I'd like to draw attention to a pleasant way to implement the view in MVC web apps that is emerging in suitably reflective and dynamic frameworks. It doesn't seem to have a name yet - I'd suggest "slim builder" and/or "untangled template view".

The technique combines the strengths of two traditionally distinct approaches - builders, and server page templates - and thereby solves some of their usual problems. I'll illustrate it through an example drawn from Rails, although you don't need to know the details of this framework or the underlying Ruby language to get the point.

If you do know Rails and its canon then the example will be very familiar: it's the bookstore index page from the "depot" tutorial in Agile Web Development with Rails, as of the end of section B.

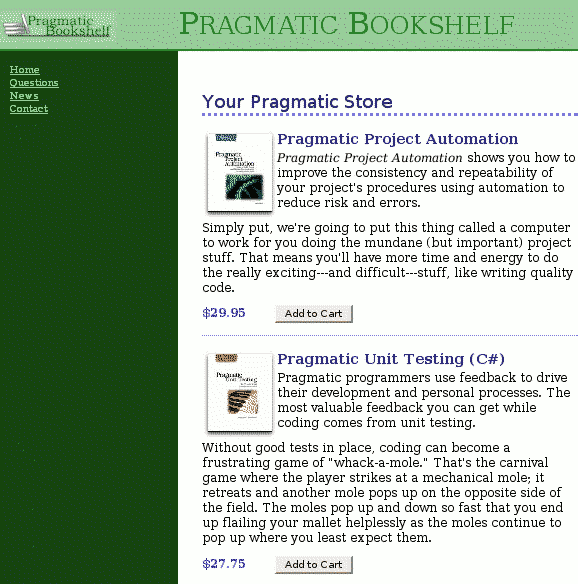

(As context for the rest of you, here's how the page renders once its style is wired up. It's simple, but will suffice for our purposes. The approaches described all extend smoothly to more complicated layouts, Ajax updates, and so forth.)

Templates - mark-up and code entangled in a server page

The traditional template view works by embedding executable code fragments into concrete mark-up. The default Rails view system uses rhtml templates processed by ERb.

Here's how we'd implement the store page view. In the tutorial - as in real Rails apps - the page gets split into different modular parts (layouts, partials, etc.) For the sake of this example I'll inline everything into one template:

<?xhtml version="1.0" encoding="UTF-8"?>
<html>
<head>
  <title>Pragprog Books Online Store</title>
  <%= stylesheet_link_tag "depot", :media => "all" %>
</head>
<body id="store">
  <div id="banner">
    <img src="/images/logo.png" alt="Logo"/>
    <%= @page_title || "Pragmatic Bookshelf" %>
  </div>
  <div id="columns">
    <div id="side">
      <a href="http://www....">Home</a><br />
      <a href="http://www..../faq">Questions</a><br />
      <a href="http://www..../news">News</a><br />
      <a href="http://www..../contact">Contact</a><br />
    </div>
    <div id="main">
      <h1>Your Pragmatic Store</h1>
      <% for product in @products -%>
        <div class="entry">
          <img src="<%= product.image_url %>" alt="Cover" />
          <h3><%= h(product.title) %></h3>
          <%= product.description %>
          <span class="price"><%= number_to_currency(product.price) %></span>
          <%= button_to "Add to Cart", :action => :add_to_cart, :id => product %>
        </div>
      <% end %>
    </div>
  </div>
</body>
</html>

To my eyes, this kind of JSP-inspired template is rather ugly - it is the dirtiest plate in the default Rails stack. Angle-bracketed web mark-up is not pretty to start with, and mixing code into it under the protection of even more punctuation does not help matters, forming uglies such as <%, <%=, and -%>. Further, the resulting template is neither fish nor flesh; it isn't validating mark-up, nor is it directly compilable code. Two worlds have been messily ent-angled.

To be fair, if you need to directly mix the two, then having the mark-up around the code is probably a better choice than the converse. Templates rightly ousted sequences of print statements that cobbled together strings of explicit mark-up. Traditional entangled server page templates have a sufficient similarity to straight HTML that tag-aware tools will do a decent job of pretty-printing and coloring them. Similarly tag-aware but non-programming web folk can work with the template directly, especially when helper objects have been used to minimize the size of the scary code fragments and tuck the details safely away.

Still, it's messy. Please do better.

Builders - code that casts a mark-up shadow

When I first ran across the Template View pattern in Martin Fowler's Patterns of Enterprise Application Architecture I imagined it to cover exactly the case above and no more; template views were server pages.

But a refinement of the "cobbling" procedure described above brings us to the builder, which inverts the server page relationship between the tags and the code. By encapsulating all the opening and closing of tags within helper methods, we can hide the actual mark-up whilst persisting its structure in that of the program that knows how to build it, so that the code itself looks something like a template. Fowler's account of the view template shows he considers builders to be a valid variant; the veteran builder from those days was Perl's CGI.pm, which is referenced (albeit briefly) in the pattern.

The CGI.pm builder brews tag soup by recursively nesting expressions each of which evaluate to strings. A set of helper methods that are named after the tags they build take a hash of options followed by further string-returning expressions to concatenate together and enclose. Glossing over a few Perl/Rails gaps, here's how we can get CGI.pm to build up and print an expression that evaluates to the store page.

#!/usr/local/bin/perl
use CGI ':standard';

print(header,
  start_html("Pragprog Books Online Store"),
             # I couldn't figure out how to supply the stylesheet
  div({-id=>'banner'},
    img({-src=>"http://localhost:3000/images/logo.png", -alt=>"Logo"}),
    $page_title || "Pragmatic Bookshelf"
  ),
  div({-id=>'columns'},
    div({-id=>'side'},
      a({-href=>"http://www...."}, "Home"), br,
      a({-href=>"http://www..../faq"}, "Questions"), br,
      a({-href=>"http://www..../news"}, "News"), br,
      a({-href=>"http://www..../contact"}, "Contact"), br
    ),
    div({-id=>'main'},
      h1("Your Pragmatic Store"),
      join '', map {
        $product = $_;
        div({-id=>entry},
          img({-src=>$product->{image_url}, -alt=>"Cover"},
            h3($product->{title}),
            $product->{description},
            span({-id=>'price'}, number_to_currency($product->{price})),
            button({-action=>"add_to_cart/$product->{id}"}, "Add to Cart")
          )
        )
      } (@products)
    )
  ),
  end_html
);

This builder is very Perlish. It achieves high-level brevity at the cost of some low-level heavy punctuation, as well as dragging its helpers into the global scope. We got to use some semi-functional programming cuteness to iterate over the products within the innards of a huge expression. This is charming if, like me, you have an old affection for the language; but even if you find Perl distasteful I hope you'll agree CGI.pm seems to have hit upon a good idea.

The Ruby version most directly descended from CGI.pm is XmlBuilder, and it's the default builder within Rails. One change in approach is that rather than building a page as one big expression that nests method calls and string concatenation, instead we let the building occur as a side effect and hence write a regular sequential program with guards and iterators.

Here's the rxml template to get Rails to render the store page:

xml.instruct! :xhtml, :version=>"1.0", :encoding=>"UTF-8"
xml.html do
xml.head do
  xml.title("Pragprog Books Online Store")
  xml<<(stylesheet_link_tag "depot", :media => "all")
end
xml.body :id=>"store" do
  xml.div :id=>"banner" do
    xml.img :src=>"/images/logo.png", :alt=>"Logo"
    xml.text!(@page_title || "Pragmatic Bookshelf")
  end
  xml.div :id=> "columns" do
    xml.div :id=>"side" do
      xml.a("Home", :href=>"http://www...."); xml.br
      xml.a("Questions", :href=>"http://www..../faq"); xml.br
      xml.a("News", :href=>"http://www..../news"); xml.br
      xml.a("Contact", :href=>"http://www..../contact"); xml.br
    end
    xml.div :id=>"main" do
      xml.h1("Your Pragmatic Store")
      @products.each do |product|
        xml.div :class=>"entry" do
          xml.img :src=>product.image_url, :alt=>"Cover"
          xml.h3(product.title)
          xml<<(product.description)
          xml.span(number_to_currency(product.price), :class=>"price")
          xml<<(button_to "Add to Cart", :action => :add_to_cart, :id => product)
        end
      end
    end
  end
end
end

This is looking OK, but it isn't nice enough to move me from rhtml - it's still a bit hard to read, just from a different angle. We haven't yet reached a DSL for writing pages - web people probably couldn't work with this directly. My DRY eyes are offended by some remaining duplication. What with introducing the xml builder object to scope its helpers, this is actually more verbose as the server page. And, there's too much punctuation (although I confess I've not suppressed everything I could - I'm leaving some tricks for our big finish...)

Still too massive. Let there be light.

Slim builder untangles the template

What happens if we throw further Ruby magic at the problem so as to slim down the builder?

Markaby happens:

xhtml_strict {
head {
  title "Pragprog Books Online Store"
  stylesheet_link_tag "depot", :media => "all"
}
body.store! {
  div.banner! {
    img :src=>"/images/logo.png", :alt=>"Logo"
    text @page_title || "Pragmatic Bookshelf"
  }
  div.columns! {
    div.side! {
      a "Home", :href=>"http://www...."; br
      a "Questions", :href=>"http://www..../faq"; br
      a "News", :href=>"http://www..../news"; br
      a "Contact", :href=>"http://www..../contact"; br
    }
    div.main! {
      h1 "Your Pragmatic Store"
      @products.each do |product|
        div.entry {
          img :src=>product.image_url, :alt=>"Cover"
          h3 product.title
          text product.description
          span.price number_to_currency(product.price)
          button_to "Add to Cart", :action => :add_to_cart, :id => product
        }
      end
    }
  }
}
}

Markaby is "mark-up as Ruby." It's real pretty.

Punctuation noise is minimal. As a matter of style we've used curlies rather than "do ... end" for the tag blocks, and managed to suppress almost every bracket. This is about as clean as the structure representation could be whilst remaining executable code. (HAML gets briefer still, including Pythonesque semantic indentation, but it only manages this through going back to the being a template that needs pre-processing - using a better rhtml like this is an interesting alternative, though.)

There's much handling of method_missing so that method invocations can be used to build the basic CSS classes and ids without needing hashes. (Like many builders Markaby is also using further reflection to more cheaply create the tag helper methods that these modify.)

The builder is made implicit again by using instance_eval to carry the object's context through to its inner blocks - this avoids scope pollution without incurring a character tax. (XmlBuilder used to turn this trick too, but because it builds general XML the chance of confusion was considered too high and the technique was retired. As an HTML builder Markaby suffers less, and we also get to enforce a restricted builder context so as to control which models can be referenced by the view.)

The code flow has been designed so that natural idioms tend to do the right thing; appropriate encodings are implicitly applied to appropriate string arguments. The inner details can be mysterious, but why would you expect helpful magic to be otherwise?

Talking of doing the right thing by default... Markaby was the only one of the builders I tried that generated completely (i.e. W3C) validating mark-up out the box without any tuning. Further, it also complains if you attempt to build such things as elements with duplicate ids, or tags that aren't allowed to self-close - this validation is a nice benefit of builders. Once armed with a decent Ruby-aware editor working in Markaby can provide plenty of warning of mistakes in either code or tags - the best of both worlds, keeping programmer and web designer happy.

Conclusion

I think this is the right approach for view building. To repeat my proposed terminologies:

It's an untangled template view - all the flexibility of your regular server page view template, but less of the mess. We've disent~~angle~~d the template by collapsing mark-up into the code and outlawed all distressing pointy brackets.
And it's a slim builder - all the power of your regular builder but less of the mass. The result is a DSL for authoring web pages.

What are the slimmest builders in other languages and frameworks?
